   Mobile 2m mast system

(see also Stationary 10m mast system)

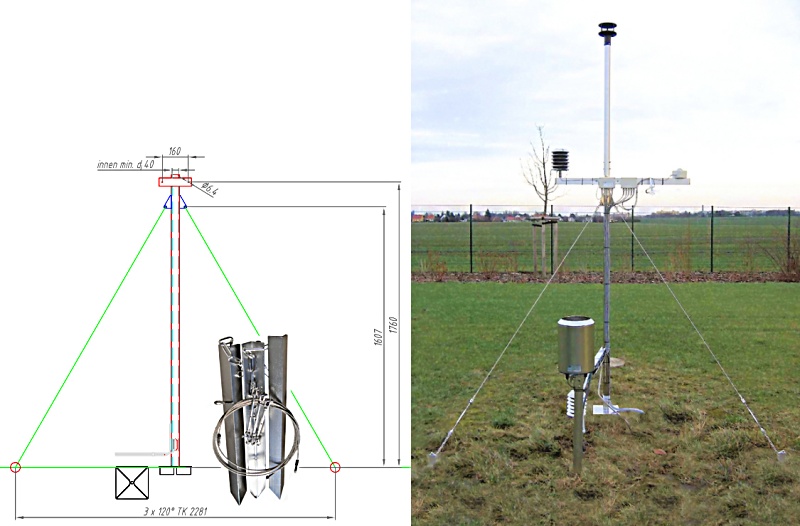

mobile 2m mast system

     Characteristics
  • high-grade steel mast with cross beam link
  • 3 anchoring wires - high stability
  • profile-strengthened base plate - secured from sinking
  • 100% stainless - almost unlimited life span
  • simple attachment of the sensors
  • simple structure and installation,  permanent change of position without problems
     Order number
  • 11001
     Description

The mobile mast system offers the possibility to the user to fasten sensor technology without problems according to the local conditions as well as a short term installation and permanent change of position. A high firmness and an almost unlimited life span are given by a high-grade steel construction.

The mobile mast system consists of a mobility applicable undivided high-grade steel mast with welded base plate. The base plate was equipped with an anti-twist ground protection. The bracing is made by three high-grade steel ropes, which are anchored in the ground with high-grade steel pegs. The mast is adjusted by means of turnbuckles.

The sensors are fastened to an optional cross beam 2m above ground according to the guidelines of the German Weather Service.



     Installation

It must be noted for the installation of the mast system that the cross beam attachment is aligned in north south direction. So, for example, the sensor for the density of light has to be fixed on the south lever  and the rain gauge on the north side.



     Technical data

Total length: 1800 mm

Outer diameter: 45 mm

Base plate: 200 x 200 x 50 mm

Bracing: 3 high-grade steel ropes

Cross beam attachment for sensors:
200 x 50 x 5 mm
Hole spacing 160 mm
Diameter 6.4 mm

Weight: 7.5 kg
